Discontinued

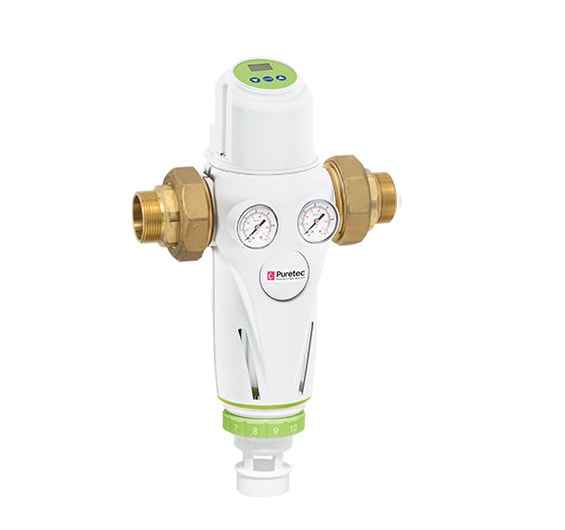

(Runout stock) Intelligent Auto Backwash Mains Water Filter 1in BSPF, 89um

Model No: IAB25

WHERE TO BUY

Impurities such as sand, rust flakes, lime deposits and coarse material can damage the water distribution line and household / office appliances (pipes, valves, mixers, faucets, washing machines, etc.). The installation of a protection filter is the most simple and efficient option to avoid such problems. Puretec IAB is an automatic self-cleaning filter, robust and compact, with brushing system for the cleaning of the cartridge and discharge valve for dirt.

Specifications

Ordering Code
IAB25
Micron Rating
89 Micron
Connection
1”
Flow Rate
96 Lpm
Min/Max Pressure
150 - 1,600~ kPa
Min/Max Water Temperature
0 - 30°C Protect from freezing
Min/Max Ambient Temperature
0 - 40°C Protect from freezing
Power Supply
230V / 50 Hz
Warranty
1 year^
*Micron rating is nominal. ˜If pressure exceeds max pressure, an approved pressure limiting device needs to be fitted. Note: Check local plumbing regulations as a specific kPa limit for the pressure limiting valve may be required (in particular, The Australian & New Zealand Plumbing Standards. Ref. AS/NZS 3500.1:2021, Clause 3.3.4). If water hammer is present, fit a hammer arrestor close to the source of the hammer.

Features & Benefits

  • •Manual override to backwash on demand at any time.
  • •Stainless steel net filtering surface is resistant to mechanical shock and pressure gradients.
  • •Cleaning brushes to dislodge sediment from the screen during the backwash cycle.
  • •Simple initial set-up.
  • •Set and forget cycles.
  • •Brass head means it’s tough and resistant to mechanical shear stresses.
  • •Heavy duty discharge valve.
  • •2 dry contacts.
  • •Compatible with WTV5092 differential switch.
