Discontinued

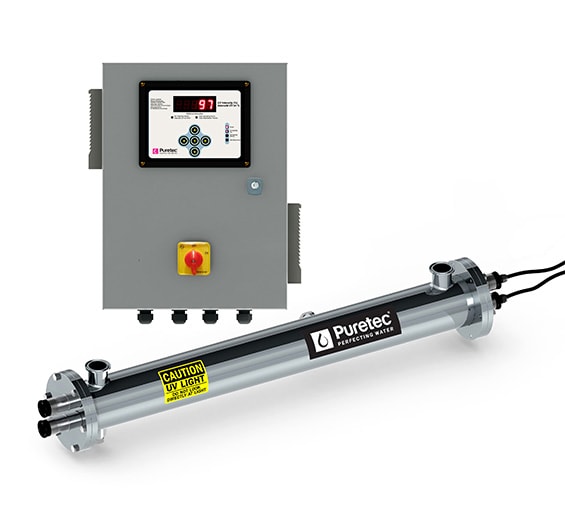

RI-60K Ultraviolet System

  • •3" Connection

  • •530 Litres per minute

  • •Up to 12,000 hour lamp life

Model No: RI-60K

WHERE TO BUY

Puretec RI-60K ultraviolet disinfection systems are ideal for microbiological protection in your industrial application. Constructed with highly polished 316L stainless steel reactors and industrial grade enclosures, it uses proven low pressure amalgam (LP-AM) lamp technology offering stable output in both hot and cold water applications.

Covering a wide variety of applications in both regulated and unregulated markets, RI Series offers environmentally friendly disinfection at lower capital and operating costs than traditional disinfection solutions.

Specifications

Ordering Code
RI-60K
Flow Rate @ 16 mJ/cm² @ 95% UVT
996 Lpm
Flow Rate @ 30 mJ/cm² @ 95% UVT
530 Lpm
Flow Rate @ 40 mJ/cm² @ 95% UVT
401 Lpm
Connection
3” MNPT
Replacement Lamp
RL60K (2x required)
Replacement Sleeve
RQS60K
Operating Temperature
2 - 60°C (36 - 148°F)
Power Supply
230V / 50-60Hz
Warranty
2 years^
Accessories
RI-SEN3 - UV sensor module, suits RI-37K
RI-TMV - Water temperature management valve, ½” BSP
RI-MC37K - UV remote monitor cable, 10m, suits RI-37K, RI-60K

Features & Benefits

  • •Colour user interface with full diagnostics and warnings.
  • •“Future-proof” expandability port for future upgrades and options.
  • •Axial flow, 316L stainless steel reactor, polished reactors with integral sensor port to allow for sensor upgradeability in the future.
  • •Universal input, constant current electronic controller in a splash-proof case.
  • •12,000 hour lamp life.
