MPB202B Bag Filter Housing
Bag Filter Housing, 20inch 1.5 inch conn, Bracket, Maxi Plus
MAINTENANCE MADNESS PROMO
Purchase any participating product and get the matching maintenance kit or replacement cartridge FREE!Click Here
Price: $1,067.29 INC GST*
Model No: MPB202B
WHERE TO BUY
The Puretec MaxiPlus™ bag filter housing assembly is commonly used in high sediment, chemical and process applications where
longer service life is required.
Durable and lightweight polypropylene construction is used giving a compact assembly. The Puretec MPB Series is capable of flow rates of up to 180 litres per minute, 38°C temperature, and a maximum pressure of 620* kPa.
Available in 1½” connection size. The Bag filters come to suit in 1, 5, 10, 25, 50 ,100 and 200-micron grades. Duplex systems, manifolded together are recommended for higher and/or uninterrupted flows.
Custom design manifolds can be designed and supplied.
Durable and lightweight polypropylene construction is used giving a compact assembly. The Puretec MPB Series is capable of flow rates of up to 180 litres per minute, 38°C temperature, and a maximum pressure of 620* kPa.
Available in 1½” connection size. The Bag filters come to suit in 1, 5, 10, 25, 50 ,100 and 200-micron grades. Duplex systems, manifolded together are recommended for higher and/or uninterrupted flows.
Custom design manifolds can be designed and supplied.
Specifications
Ordering Code
MPB202B
Connection Size
1½”
Maximum Flow Rate
180 Lpm
Min/Max Pressure
0 - 620* kPa
Warranty
3 Years^
^3 year warranty is 1 year parts and labour, plus 2 years parts only. *Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).
Features & Benefits
- •High capacity housings for flow rates up to 180 litres per minute
- •Suitable for high flow applications
- •Robust design for longevity and reliability
- •Tough polypropylene construction
- •Compact and economical, ideal for duplex systems
- •Connection size 1½”
Download
Videos
Related Products:

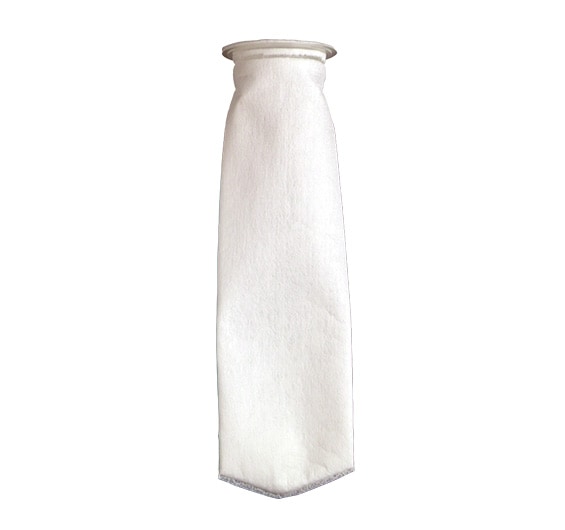

MPBR012
