MP100B

Price: $298.43 INC GST*

Model No: MP100B

Locate A Store Near You

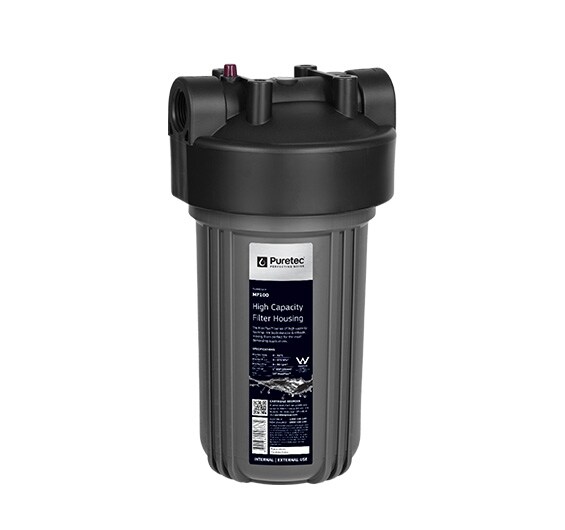

The Puretec MP100B filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housings allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10” and 20” lengths.

Specifications

Ordering Code
MP100B
Size
10''
Min/Max Temperature
0 - 52°C
Min/Max Pressure
0 - 875* kPa
Maximum Flow Rate
80 Lpm
Connection
1” (25 mm)
Warranty
10 years^
^10 year warranty is 1 year parts and labour plus 9 years parts only. Pressure + Temperature ratings mean housings must be protected from extremes above and below. This includes freezing, vacuum, overnight pressure creep + water hammer. * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4).

Features & Benefits

  • •High capacity filter housings.
  • •Features double O-ring seals for maximum durability.
  • •Ribbed design provides robust housing for years of trouble-free service.
  • •Compact and economical, ideal for duplex systems.
  • •Wide variety of cartridge replacements available.
  • •Internal and external use to suit different applications.
  • •• UV stabilised.
